FEATURES
We are retiring this product line. Our new and improved version is the Architectural Icon 8 and it can be found here: https://berner.com/product/architectural-icon-8/
For mounting heights to 8′ (environmental separation) and 7′ (insect control).
The Berner Architectural Low Profile 8 Air Curtain’s sleek design with a clear satin anodized aluminum exterior makes it ideal for applications where aesthetics matter.
Standard: Berner’s built-in Intelliswitch™ digital controller
Optional: Berner AIR™ smart controller and app, includes BACnet
Chosen by designers who are concerned with both aesthetics and protecting the intent of the space when the door is open.
- Used at entrances to enhance a vestibule, save energy, and maintain comfortable interiors
- Custom Colors or Stainless Steel available
- Simple to install, operate, and maintain
- Made in the U.S.A.
Available in single lengths from 2 ½’ to 10’
Requires a minimum of 8 ½” clearance above the door
AMBIENT HEAT
- 7 ½” high x 13 ¾” deep
- ⅕ hp motor – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (optional: custom color, RAL colors 1000 to 9023 only, or stainless)
- Wall and top mounting
- High efficiency, low noise Pro-V Nozzle
- Optional: Filter (washable)
- Optional: Berner AIR™ (smart controller & app, includes BACnet)
ELECTRIC HEAT
- 7 ½” high x 13 ¾” deep
- ⅕ hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (optional: custom color or stainless)
- Wall and top mounting
- High efficiency, low noise Pro-V Nozzle
- Open helical element with point suspension
- Alternate KW available
- Optional: Berner AIR™ (smart controller & app, includes BACnet)
STEAM/HOT WATER HEAT
- 7 ½” high x 13 ¾” deep
- ⅕ hp motor – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (optional: custom color or stainless)
- Wall and top mounting
- High efficiency, low noise Pro-V Nozzle
- Optional: Filter (washable)
- Optional: Berner AIR™ (smart controller & app, includes BACnet)
Coil features:
- Galvanized steel casing
- ⅝” copper tube x .035″ wall
- Aluminum fins
- Leak tested at 450 psi
Accessories
Comes with Berner’s digital controller, the Intelliswitch™, built-in as standard. Requires a separate activation switch.

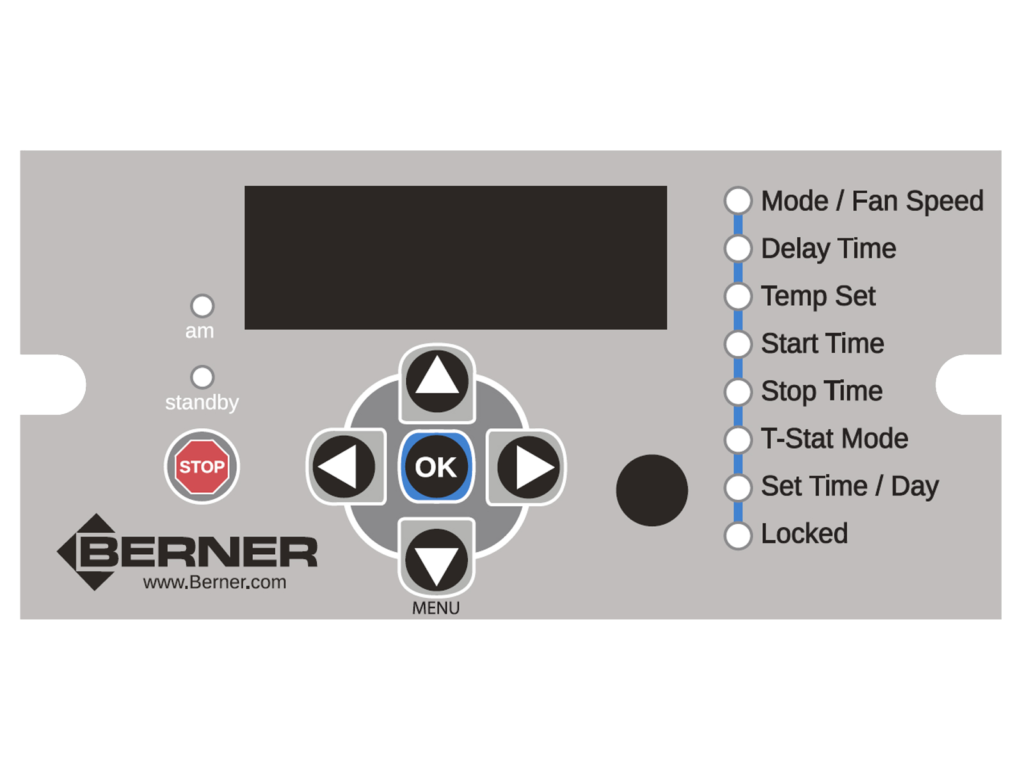

Berner Intelliswitch™
Standard
- Pre-set programs
- Simple custom programming
- Ten speeds maintained +/- 5 rpm
- Serial network connection available
- External thermostat provision
- Temperature probe (heated units only)
- Low voltage circuit for unit activation (to connect with a Building Automation System or Automatic Door)
- Optional: remote mounted Display Kit
- Optional: handheld Remote Control
Berner AIR™ – Smart Controller & App
STANDARD
- Enables wireless control of the air curtain(s) via the Berner App
- Allows Intelliswitch™ to be programmed, operated & monitored via smartphone/tablet
- Includes BACnet-IP support
- Secure: best practices for cybersecurity protocols followes
Mechanical Accessories
Optional
- Decorative Rear Adaptor – used when the backside of the air curtain will be visible
- Adjustable Depth Z Wall Bracket
- Transom Bracket – used when there is a glass transom to mount the air curtain to the mullions
- 3/8” Aluminum washable Air Inlet Filter – Factory mounted
Electrical Accessories
Optional
- Berner AIR™ (smart controller & app, includes BACnet)
- Magnetic Reed Door Switch
- Disconnect Switch(es) – toggle disconnects based on number of power supplies required.
- Remote Thermostat & Locking Cover
- Remote Temperature Sensor
- Serial Connection Cable
