FEATURES

For mounting heights to 12′ (environmental separation) and 10′ (insect control).

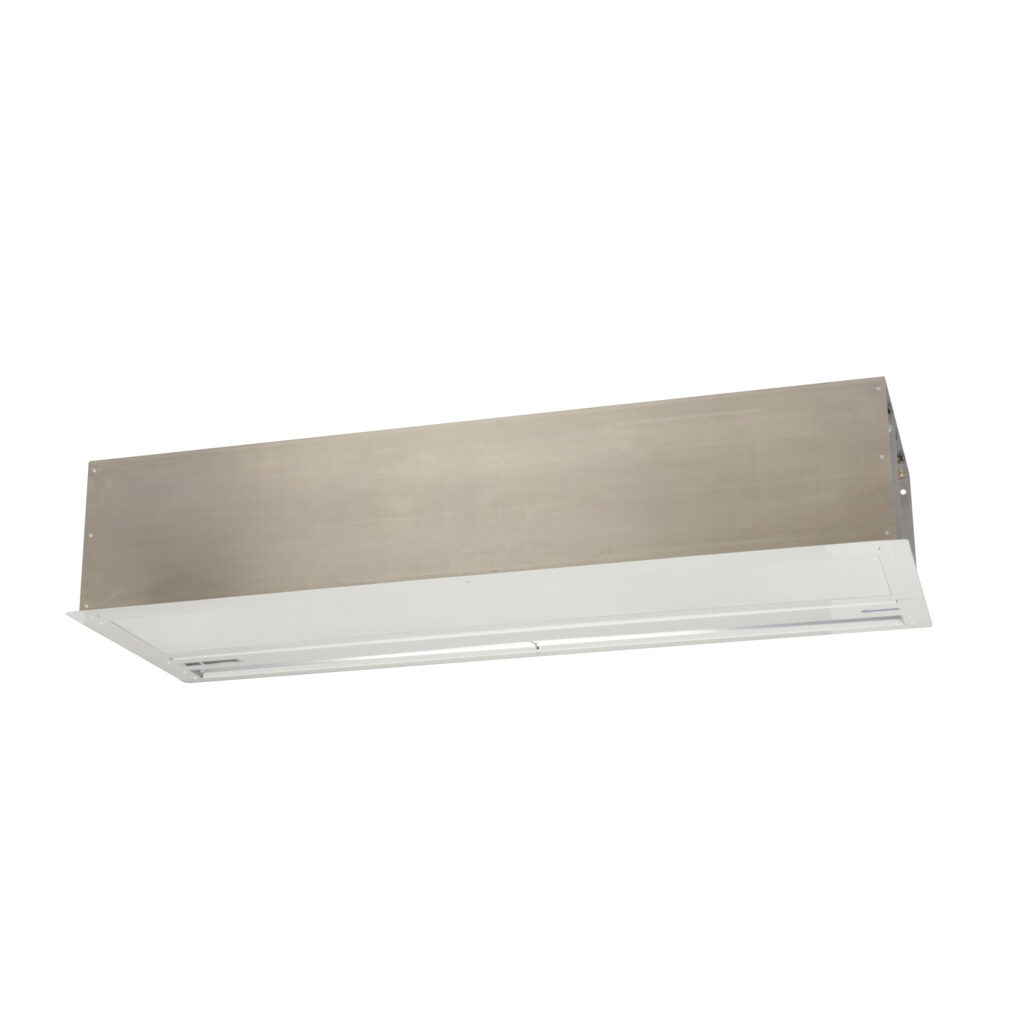

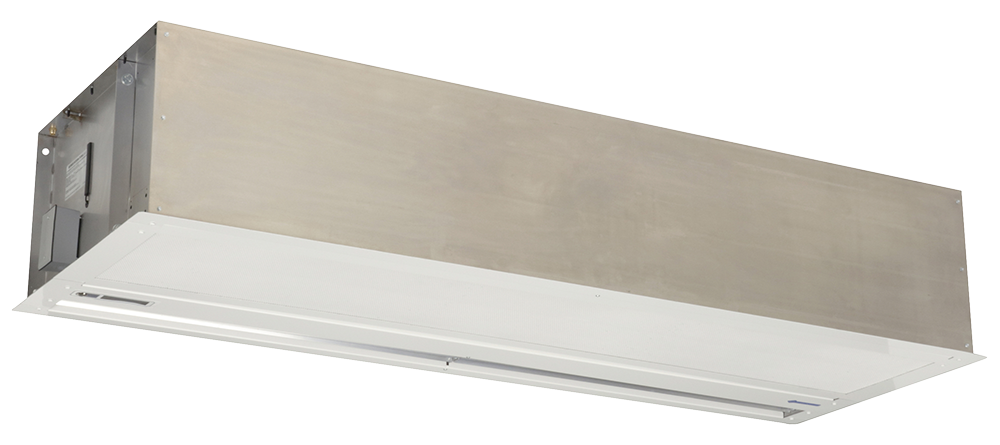

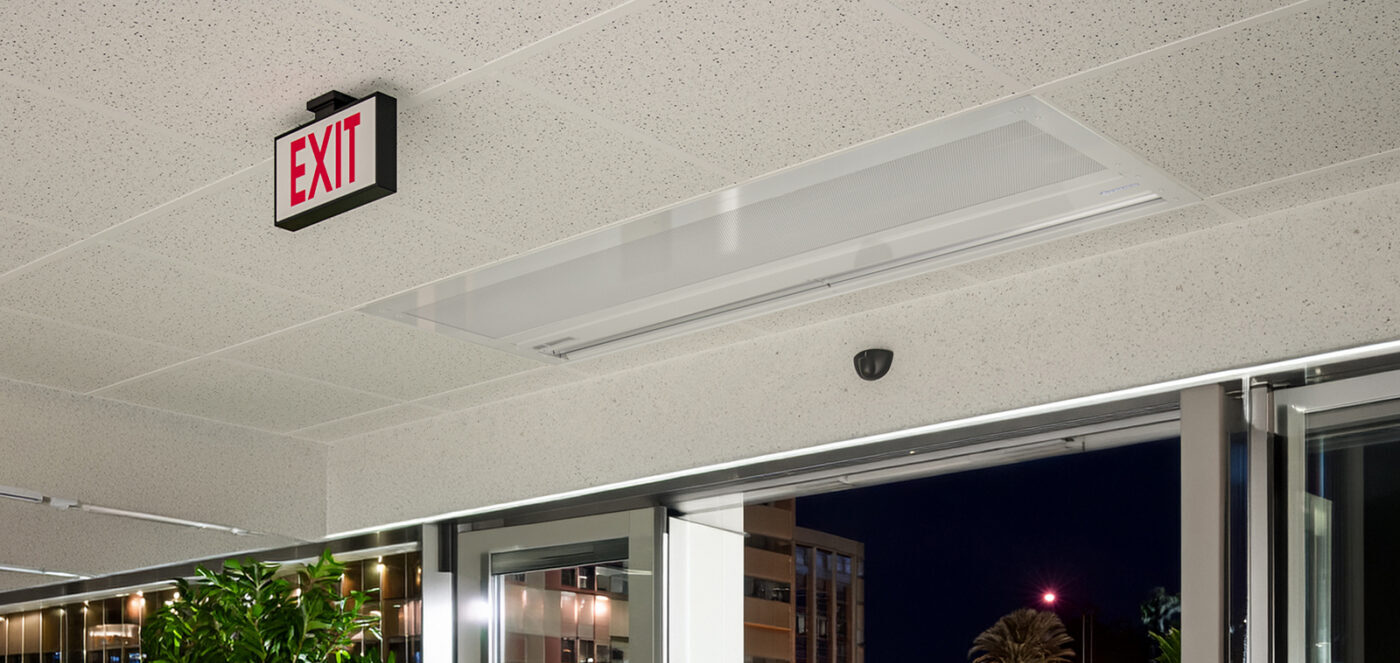

The Berner Architectural Recessed 12 Air Curtain mounts flush with the ceiling with a white aluminum exterior. Chosen by designers who are concerned with both aesthetics and protecting the intent of the space when the door is open.

Includes the ALL NEW BERNER INTELLISWITCH™ and Berner AIR® smart control & app

Optional Berner AIR BMS Package available – allows full integration of the air curtain with the Building Management System via:

  • BACnet-IP and BACnet-MS/TP
  • Modbus-TCP and Modbus-RTU

These air curtains save energy and protect the interior when the door is open.

  • AMCA certified ambient, electric, steam & hot water heated models
  • Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules

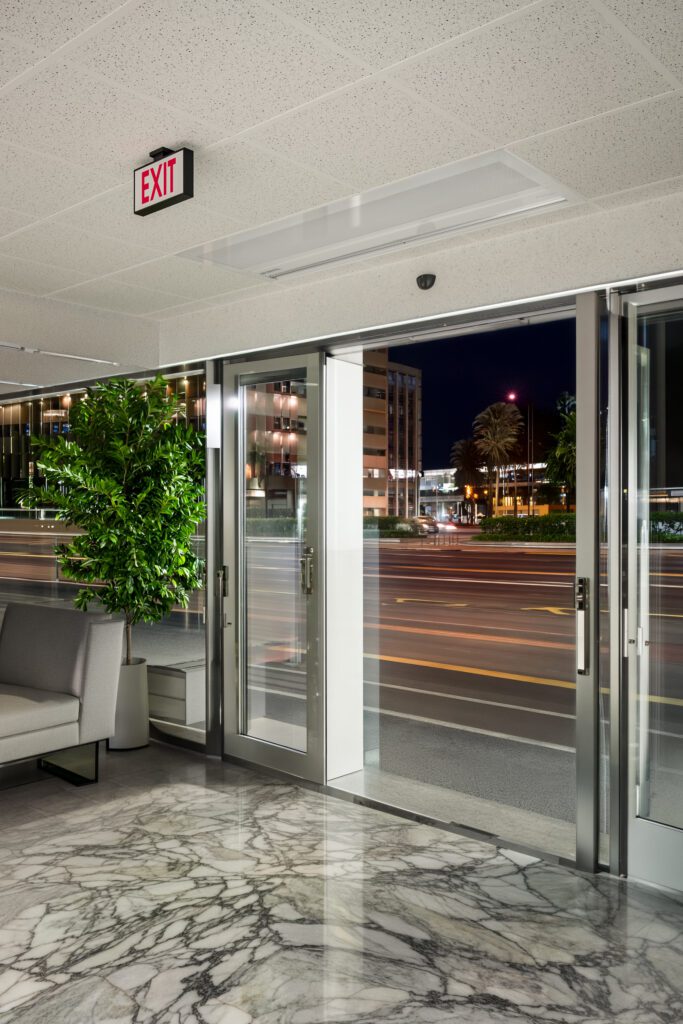

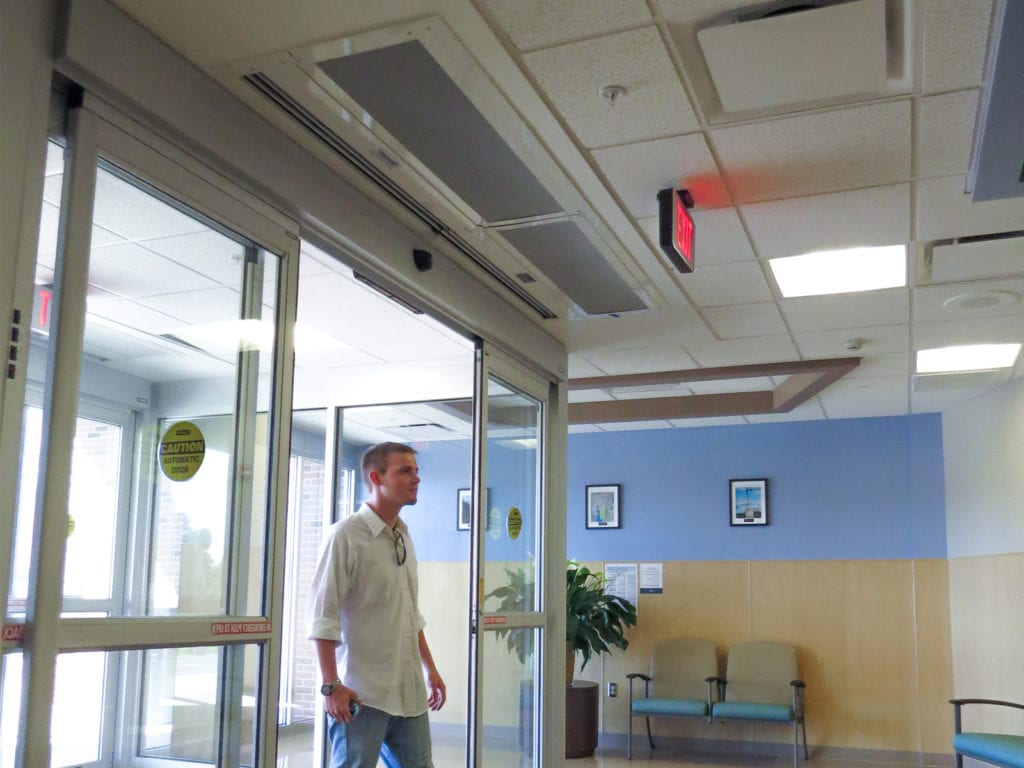

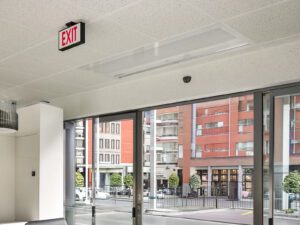

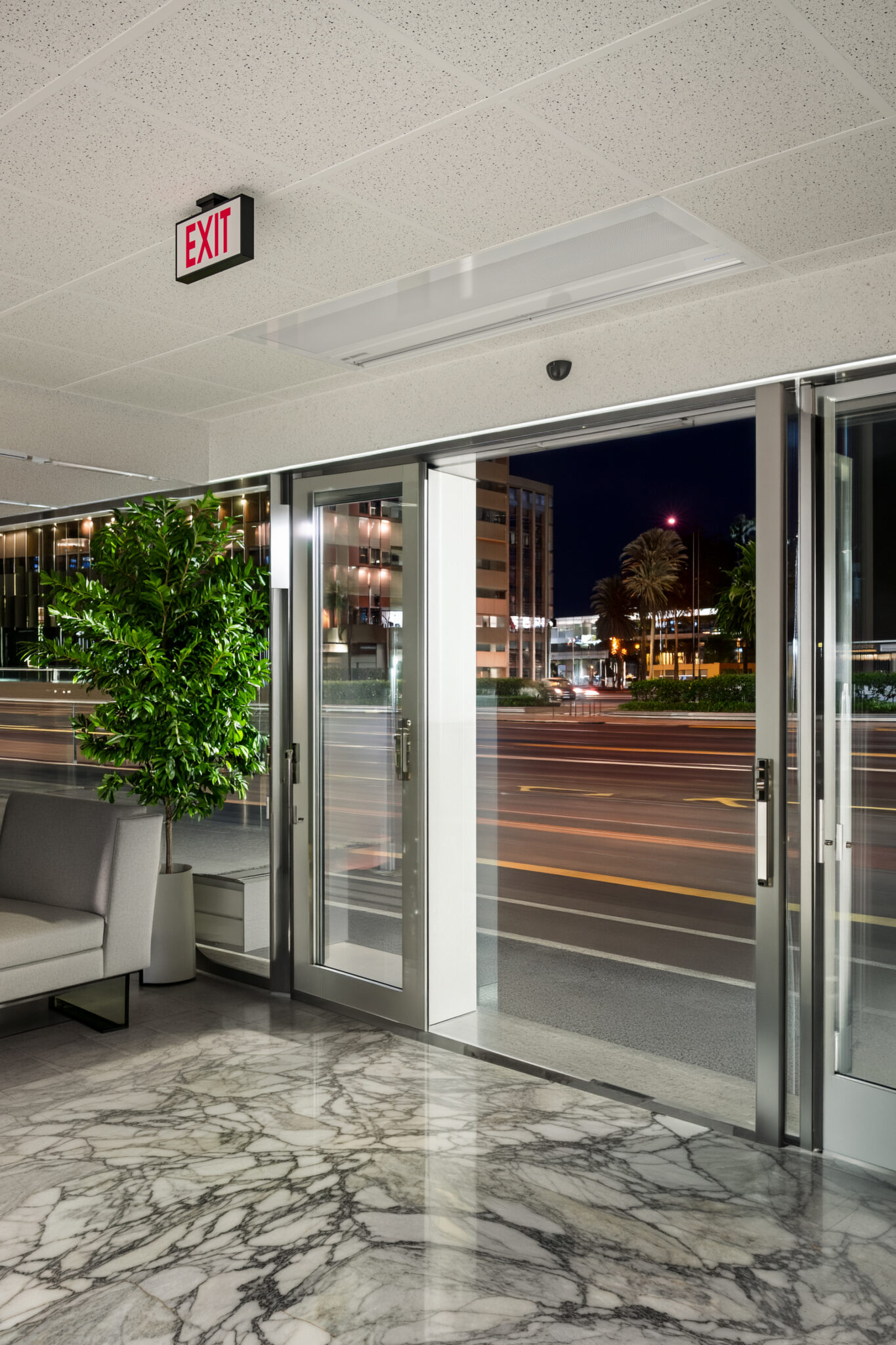

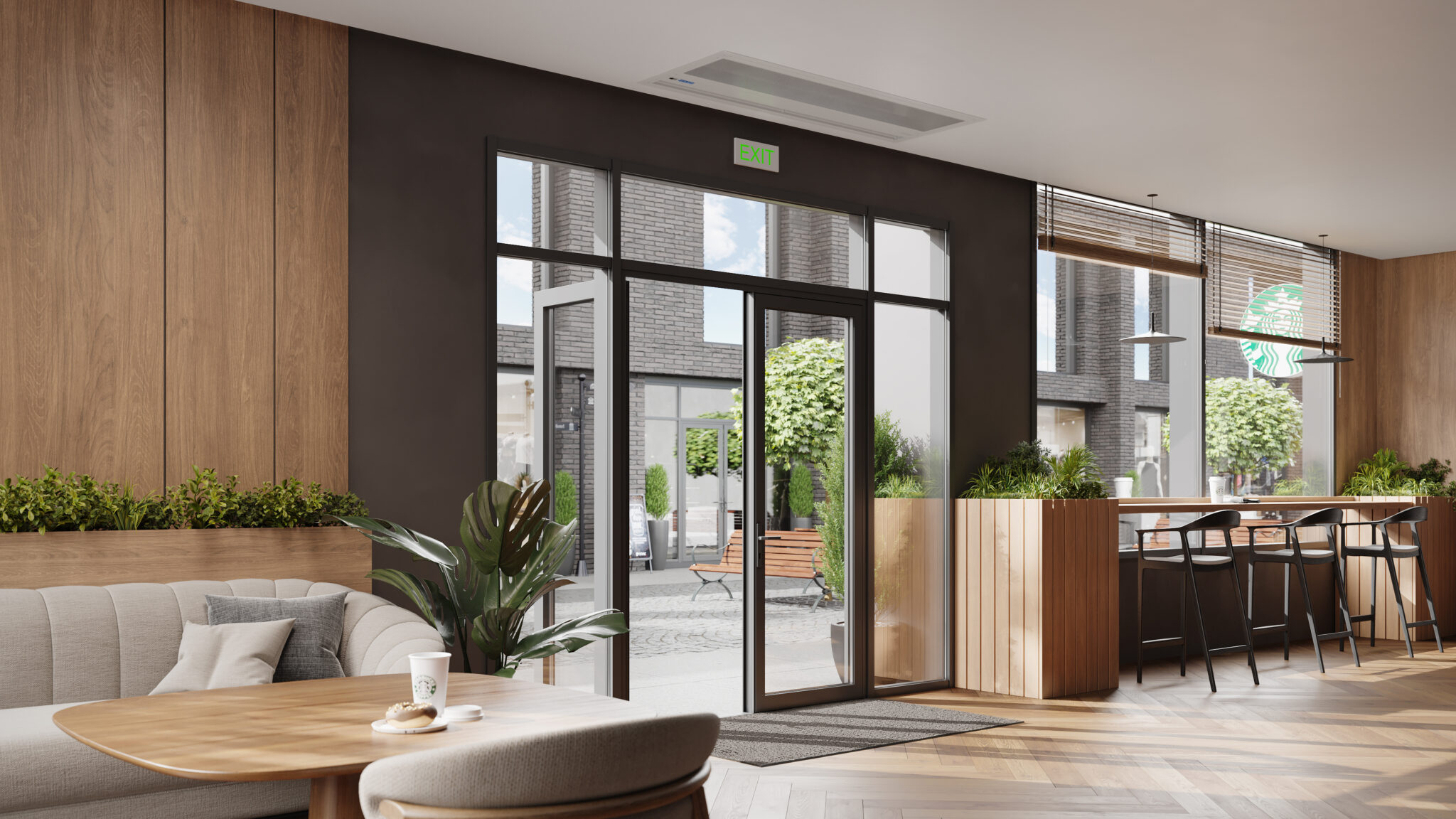

  • Used at entrances to enhance or replace a vestibule to save energy and maintain comfortable interiors
  • Custom colors or stainless steel available
  • Simple to install, operate, and maintain
  • Made in U.S.A.

Available in single lengths from 3′ to 12′
Requires a minimum of 15 ¼” clearance above the ceiling

AMBIENT

  • 15″ high x 26″ deep
  • ½ hp motor(s) – ten speeds
  • Factory installed Intelliswitch™ digital controller
  • White aluminum exterior panel (optional: stainless, bronze anodized, or custom color, RAL colors 1000 to 9023 only)
  • Top mounting only
  • High efficiency, low noise Pro-V Nozzle
  • Filter (washable)
  • Optional: Berner AIR (smart controller & app, includes BACnet)

ELECTRIC HEAT

  • 15″ high x 26″ deep
  • ½ hp motor(s) – ten speeds
  • Includes NEW Intelliswitch™ digital controller – factory mounted or remote display
  • Includes Berner AIR® BASIC (Smart Control)
  • White aluminum exterior panel
  • Top mounting only
  • High efficiency, low noise Pro-V Nozzle
  • Filter (washable)
  • Patented venturi open helical element with point suspension
  • Alternate KW available
  • Custom Color, RAL colors 1000 to 9023 only, bronze anodized, or stainless
  • Berner AIR® BMS Package

STEAM/HOT WATER HEAT

  • 15″ high x 26″ deep
  • ½ hp motor(s) – ten speeds
  • Includes NEW Intelliswitch™ digital controller – factory mounted or remote display
  • Includes Berner AIR® BASIC (Smart Control)
  • White aluminum exterior panel
  • Top mounting only
  • High efficiency, low noise Pro-V Nozzle
  • Filter (washable)
Coil features:
  • Galvanized steel casing
  • 5/8″ copper tube x .035″ wall
  • Aluminum fins
  • Leak tested at 450 psi
  • Custom Color, RAL colors 1000 to 9023 only, bronze anodized, or stainless
  • Berner AIR® BMS Package

Accessories

Comes with the ALL NEW BERNER INTELLISWITCH™ built-in digital controller with touchscreen display and the BERNER AIR® smart control & app.

Berner Intelliswitch™

Berner Intelliswitch™ with Touchscreen (unit or remote mounted) – simple, smart, integrated

Standard
  • Effortless & Flexible – choose from pre-set modes, adjust the motor speed, create a schedule, adjust the time delay, and more.
  • Space heater setting and thermostat probe (heated units only)
  • Serial network connection available
  • External thermostat provision
  • Low voltage circuit for unit activation (to connect with a Building Management System (BMS) or Automatic Door)
  • RoHS compliant
  • Follows best practices for cyber security protocols

Berner AIR™ BMS Package – for Building Management Systems

Standard
  • Enables wireless control of the air curtain(s) via the Berner AIR® app
  • Allows full integration of the air curtain with the Building Management System via:
    • BACnet-IP and BACnet-MS/TP
    • Modbus-TCP and Modbus-RTU
  • Includes the Berner AIR® BASIC:
    • Enables wireless control of the air curtain(s) via the Berner App from anywhere in the world*
    • Allows Intelliswitch™ to be programmed, operated & monitored via smart phone / tablet
    • Includes weather based adaptive setting*
    • Allows for grouping (programming multiple air curtains)*
  • Secure: best practices for cybersecurity protocols followed

* Requires on-site, secure internet enabled connection (provided by others).

Electrical Accessories

Optional
  • Magnetic Reed Door Switch
  • Disconnect Switch(es) – toggle disconnects based on number of power supplies required.
  • Remote Thermostat & Locking Cover
  • Remote Temperature Sensor
