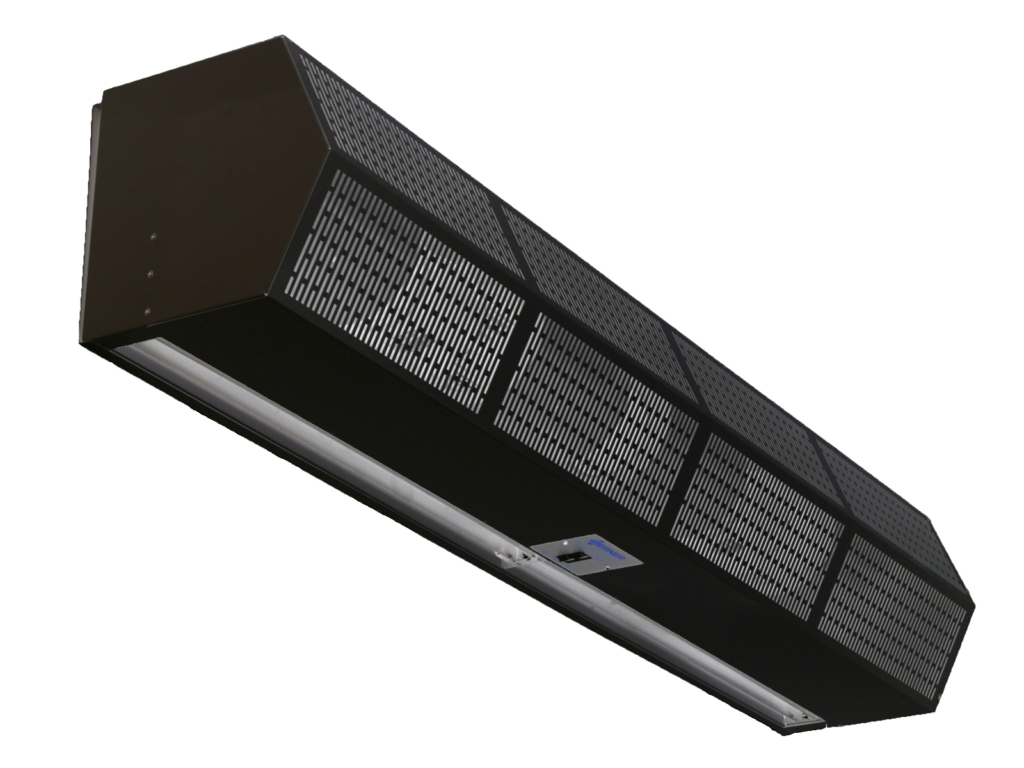

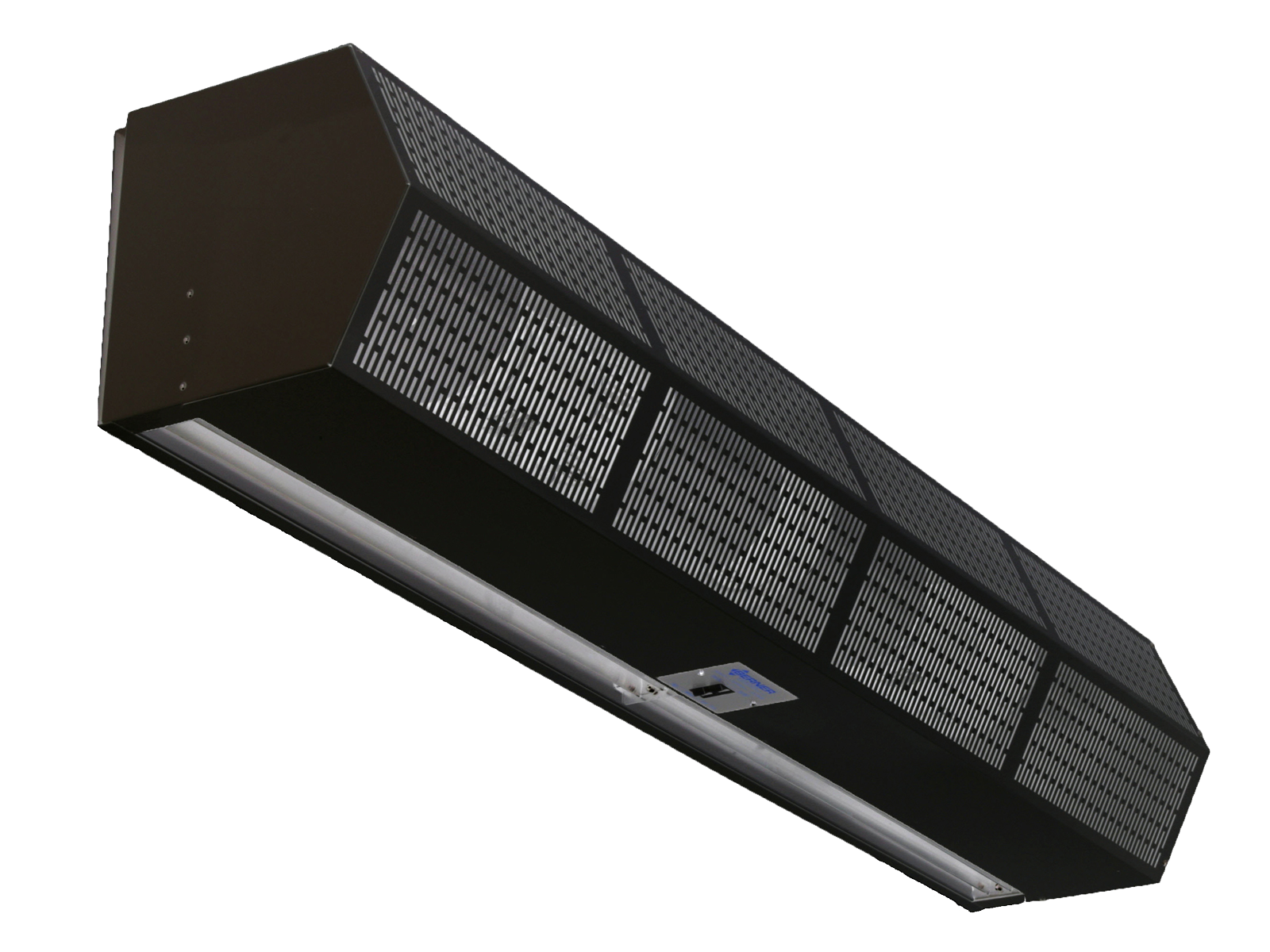

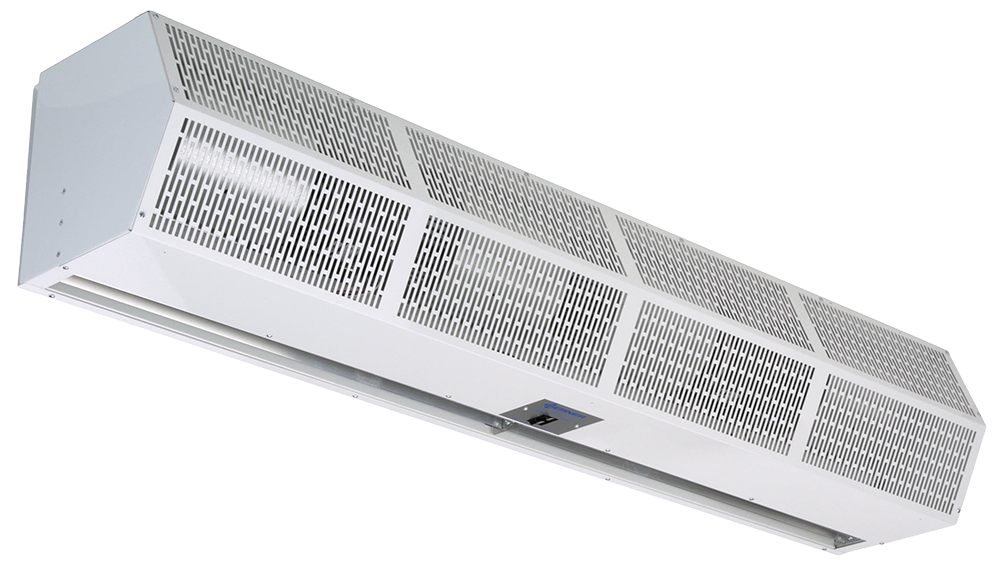

Commercial High Performance 10

$0.00

Commercial Air Curtain, Series # CHD10 (formerly CHC10)

For mounting heights to 10′ (environmental separation) and 8′ (insect control).

Available in single lengths from 3′ to 10′. Simple design, high performance, white or black powder-coated exterior. Custom colors or stainless steel available.

  • Designed to meet the functional needs of the application and to integrate into the space
  • AMCA certified ambient & electric heated models – meets IECC building code which allows AMCA certified air curtains as an alternative to vestibules
  • Simple to install, operate, and maintain
  • Made in U.S.A.
Clear selection
SKU: bbdedc4879bb. Category: .

AMBIENT

  • 14″ high x 15″ deep
  • ½ hp three-speed motor(s)
  • Factory installed fan speed switch
  • White or black aluminum exterior cover (optional: custom color, RAL colors 1000 to 9023 only, or stainless)
  • Wall and top mounting
  • Optional: Filter (washable)



 ELECTRIC HEAT

  • 14″ high x 15″ deep
  • ½ hp three-speed motor(s)
  • Factory installed fan speed/heat switch
  • White or black aluminum exterior cover (optional: custom color or stainless)
  • Wall and top mounting
  • Patented venturi open helical element with point suspension
    • Thermal overload protection
    • Galvanized steel frame
  • Alternate KW available

This model requires a separate Activation Switch.

Basic Control Package – Recommended for openings where the door stays open for an extended period or does not have a lot of traffic.

  • Air curtain turns on when door is opened and shuts off when door is closed.
  • Consists of a door switch (roller, plunger, or magnetic reed style) and line voltage or 24 volt control

Deluxe Control Package – Recommended for high traffic openings.

  • Air curtain turns on when door is opened, when the door closes, the unit remains on until set delay time expires.
  • Consists of a door switch (roller, plunger, or magnetic reed style), a time delay, and line voltage or 24 volt control.

Comfort Plus Control Package – Heated Units Only.

  • Provides supplemental heat when door is closed and allows the air curtain to run at the speed selected to protect the opening when the door is opened.  When door is closed the air curtain runs at low speed for supplemental heat until the thermostat is satisfied.
  • Consists of a magnetic reed door switch, a time delay, a thermostat, and 24 volt control.

Berner offers an Automation Control Package version of all Control Packages, these allow the air curtain to interact with Building Automation Systems (BAS) or Automatic Door Controllers to turn on or off.

Electrical Accessories

  • Three speed selector switches, remote mounted
  • Hand/Off/Automatic switches, remote mounted
  • Disconnect Switch(es) – toggle disconnect, remote mounted
  • Remote Thermostat & Locking Cover
  • Remote Temperature Sensor

Mechanical Accessories

  • Nozzle Extension for above ceiling installation
  • Wall mounting plate
  • Top mounting bracket
  • Tamper Resistant Correctional Package
  • Plunger door switch mounting bracket
  • 3/8” Aluminum washable Air Inlet Filter – Factory mounted

For details, contact your Berner Representative.

Data Sheets

CSI Specs

Installation Instructions

Flyer

Replacement Parts

  • C-UL
  • AMCA
  • FDA
  • USDA
